Panda PRJ-666

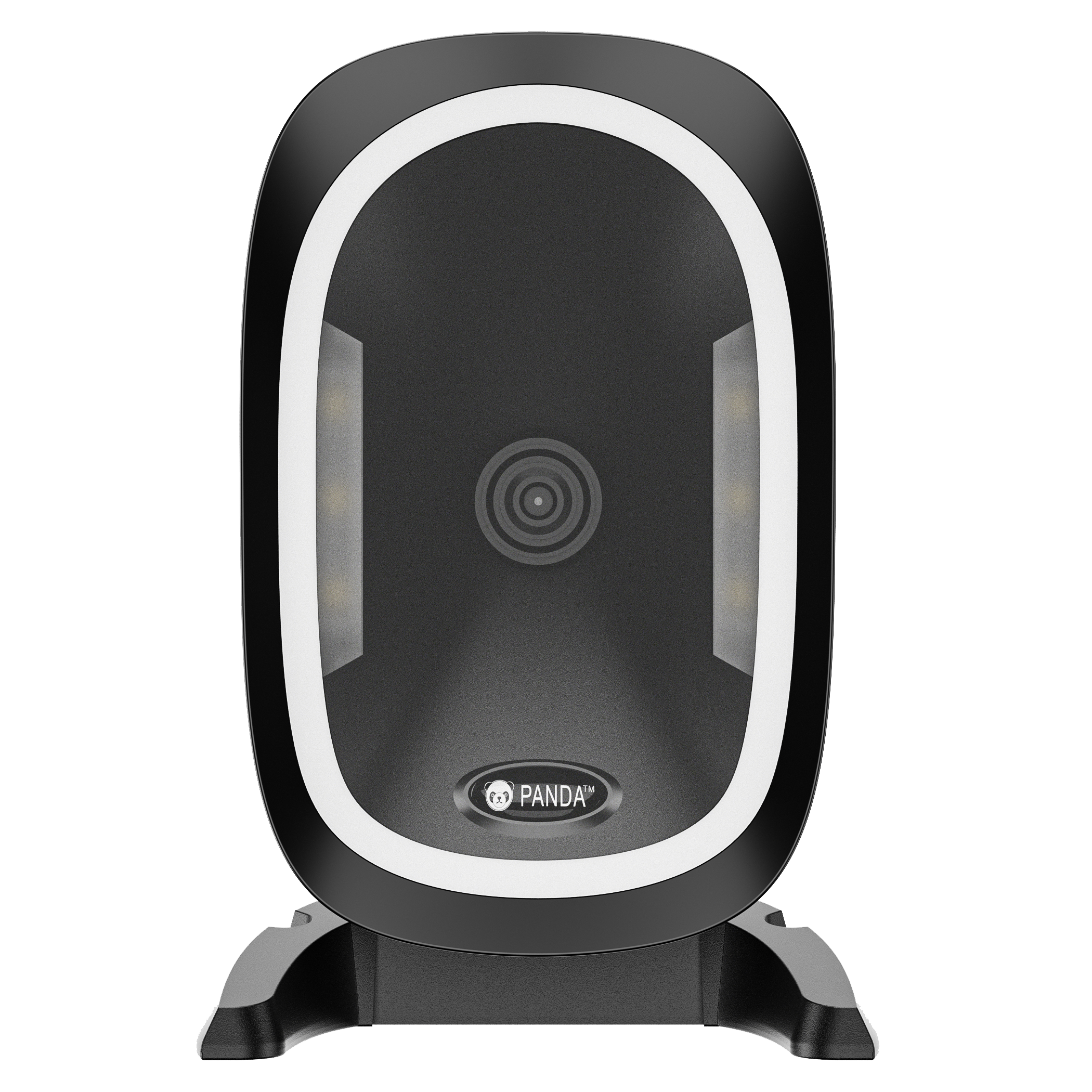

PRJ-666 Omni 2D Image Barcode Scanner

Feature

* Can read screen bar codes such as mobile phones and computers.

* USB and RS232 interface, can automatically match device,plug and play.

* Unique shape design,rotatable base to meet many scanning applications.

* Using the most advanced decoding algorithm, can decode most 1Dand 2D.

* Blue and red LED indicator,double buzzer to adapt to various nosy environments.

OPERATIONAL PARAMETER

Image (pixels)::640 pixels(H)480 pixels(v)

*Light Source: Aiming:617 nm LED ;illumination:6500K LED

*Decode Capability;

2D: QR Code, Data Matrix, PDF417,Aztec, Maxicode, etc.

1D: UPC/EAN/JAN,UPC-A & UPC-E,EAN-8 & EAN-13, JAN-8 &JAN-13, ISBN/ISSN, Code 39 (with full ASCII), Codabar (NW7), Code 128 & EAN 128,Code 93,Interleaved 2 of 5 (ITF),Addendum 2 of 5, IATA Code,MSI/Plessy, China Postal Code,Code 32 (Italian Pharmacode),RSS 14,RSS Limited, RSS Expanded

*Depth of Filed: 0-200mm @ UPC/EAN 13mil PCS=90%；0-150mm @ QR 20mil PCS=100%

*Scan Angle: Left and right 60°/Front and Rear 60°/Move360°

*Field of view: 48° horizontally, 30° vertical

*Read Resolution ≥ 5mil

*Print Contrast: ≥25%

*Visual Indicator: Blue LED Lights , Double Buzzer

*Interface: USB
