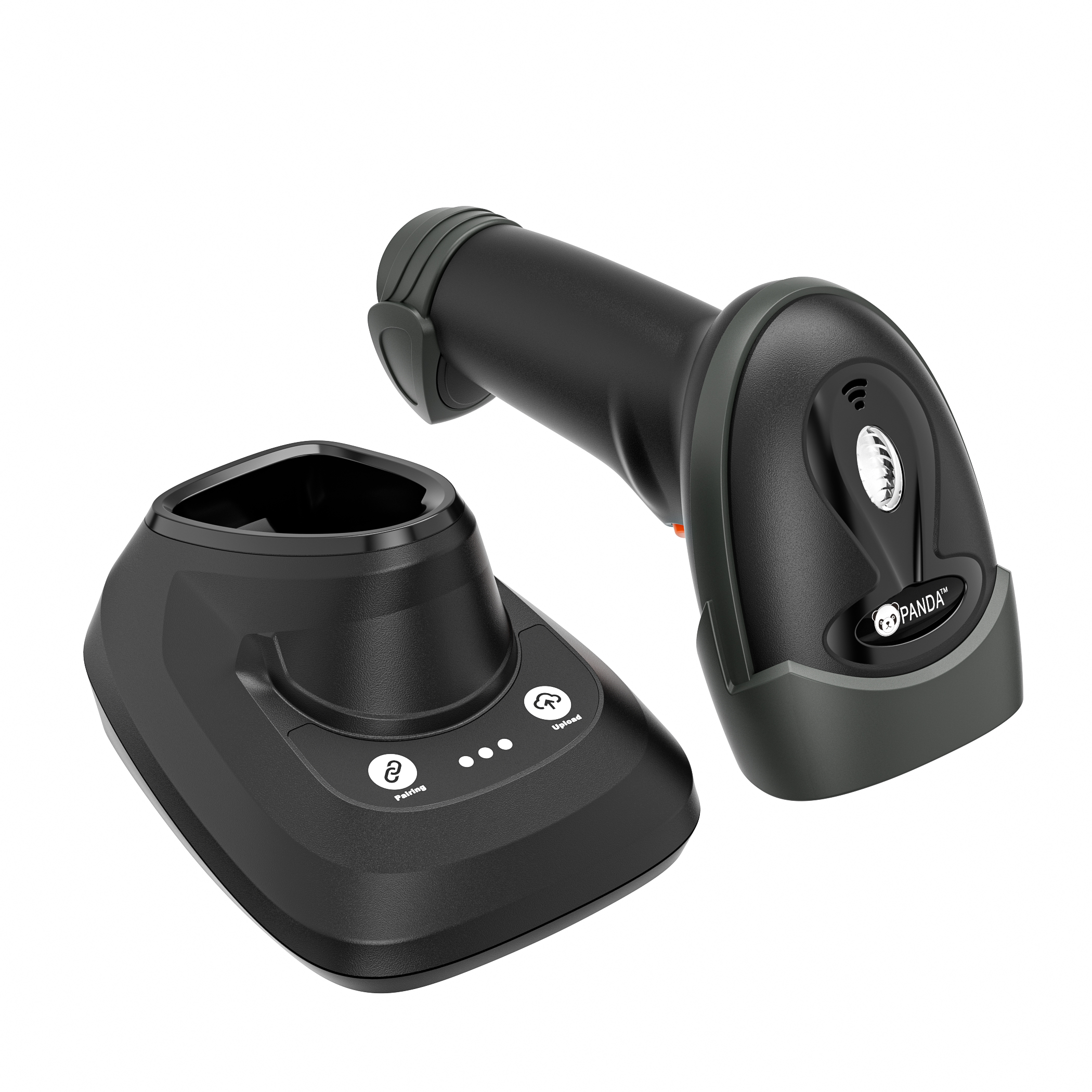

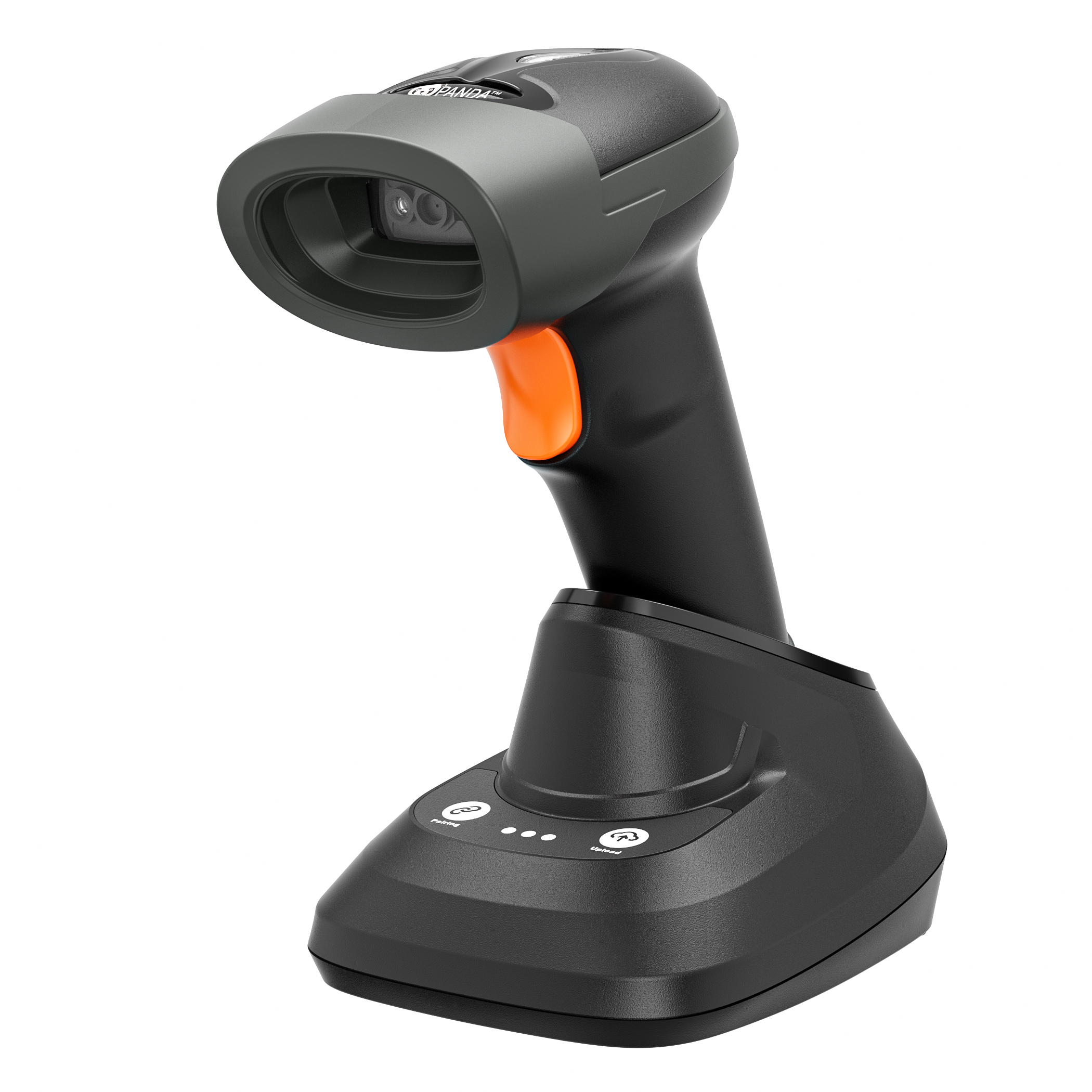

Panda PRJ-BT888-SRC

Panda PRJ-BT888-SRC

●1MP image frame rate up to 90fps

●Support OCR ( Passport, ID card,driving license card,Visa Card etc.)

●3-in -1 transmission: Cradle +BT+Type-B Cable

●Can read all 1D/2D/Dotcode barcode on the screen and paper

●Support double firmware upgrade online: wireless and decoder.

●Support for offline storage mode,can memory 380,000 characters (EAN-13 code)

logistics, express, Warehouse inventory,Tobacco,Health care or some industrial business

Operation Parameter

Image Sensor : CMOS

Image (pixels) : 1280 pixels (h) * 800 pixels (V)

Light Source : Aiming ; 617 nm LED : Illumination:4000K LED

Frame Rate : 90 FPS

Depth of Field : 4mil code39 4 butes :30-120mm

13mil EAN-13 13 Bytes : 25-300mm

10mil PDF417 8 bytes: 5-280mm

10mil QR 8bytes : 15-180mm

Scan Angle : Elevation angle 65°/Tilt angle 30°/Declination 55°

Field Of View : 34° horizontal, 28° vertical

Scan Mode : Handhand (Manual) /Handfree (Automatic )

Firmware : Decoder update online

Minumin Resolution : ≥ 3mil (code39)

Print Contrast : ≥ 20%

Visual Indikator : Three LED indicator : Green(decoder light) Red(charge light), Blue(Connection

success).Buzzer , Motor vibration.

Interfaces : USB-TypeB, RS-232, 2.4G, blue BLE4.0(Optional) , Virtual serial Port

Transmision Range : 2.4G: 100meters, Bluetooth HID,BLE、SPP：:40meters (On open air)

Transmiisn Mode : USB-typeB Wired, 2.4G, Blue BLE4.0(Optional)

Memory Capacity : Up to 512000 bits (38000 EAN 13 code) or customize memory

OS : Windows, IOS, Android

Beeper Operation : Programmable Tone & Volume

Physical parameter

Dimension : Scanner: 174mm*66mm*90mm(L*W*H)Cradle:122mm*94mm*75mm(L*W*H)

Package Box Size : 220mm*175mm*105mm(L*W*H)

Weight : Scanner:190g Cradle:132g (without the cable)

Cable : USB-Type-B charge cable (1.5meter)

Connector Type : Charge cable with USB2.0- Type B ( Printer cable)

Case Material : ABS+PC
