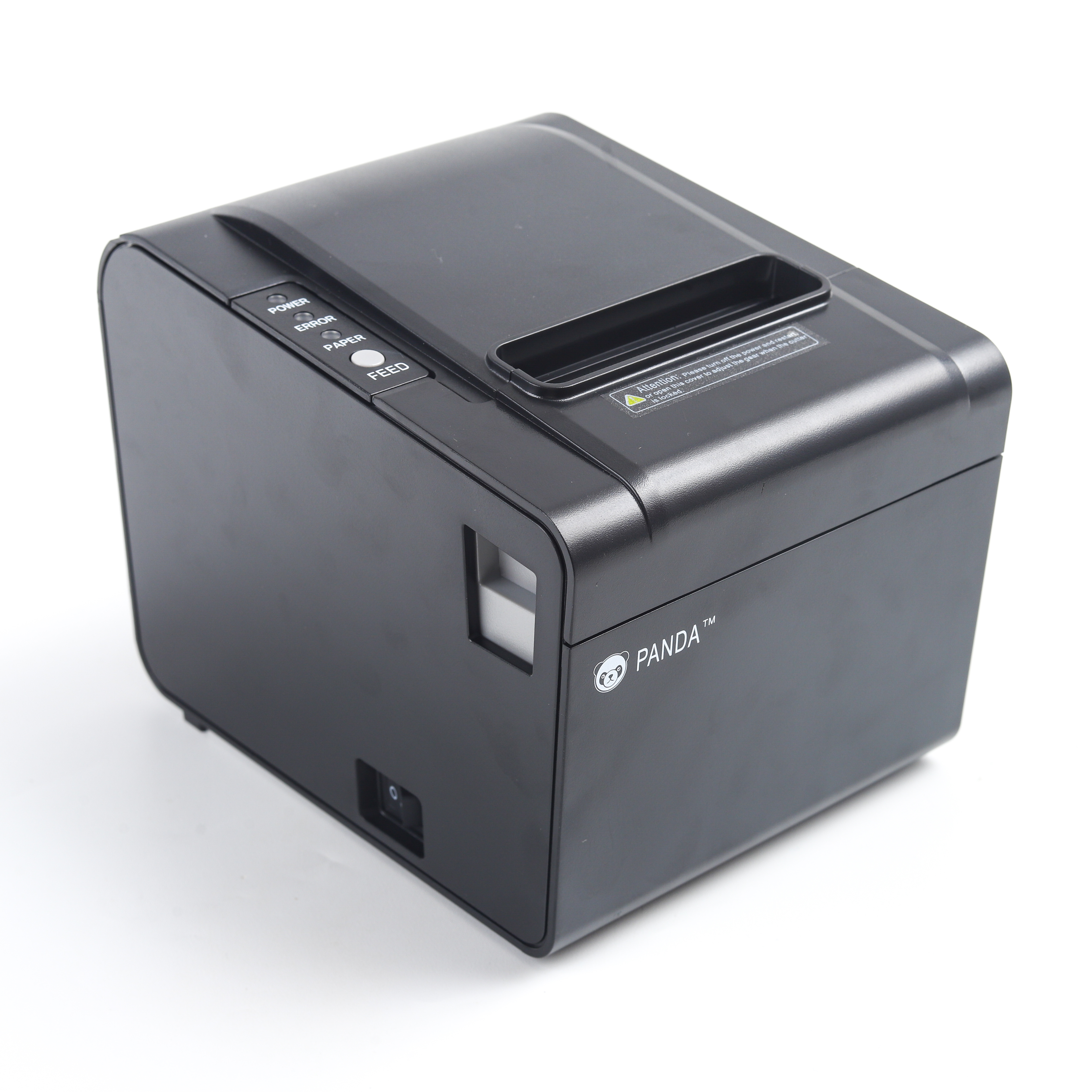

Panda PRJ-80USE ( USB + Serial + Ethernet )

PRJ-80USE 80mm Thermal Receipt Printer

1. High printing speed 250mm/s, low noise

2. Auto cutter

3. Desktop or wall-hanging

4. Interfaces:USB + serial + LAN (ethernet)

5. Suitable for kitchen, reception and many other applications

Printing method: Direct thermal printing

Effective printing width: 72mm or 48mm

Resolution: 203dpi

Printing speed: 250mm/s

Printing density: 576 dots/line or 384 dots/line

Character set: GB18030 (Simplified Chinese)

Print font: ASCII Font A12×24, ASCII Font B 9×17, Chinese: 24×24

Character per line: Font A-48 lines/Font B-64 lines/Chinese-24 lines

Paper specification: Paper width 79.5±0.5mm

Paper roll diameter: Φ80mm

Paper loading: Easy paper loading

Barcodes: Barcode type

UPCA/UPCE/EAN13/EAN8/CODE39/I25/CodeBar/CODE128/CODE9

3/CODE11/MSI/QRCORE/PDF417

Auto cutter: 1 million cuts

Interface: USB + Serial

Emulation: ESC/POS/OPOS

Driver: WIN2003/WINXP/WIN7/WIN8/WIN10/LINUX/Mac

Power supply: DC 24V,2.5A

Cash drawer Control: DC 24V，1A

Certificate: 3C,CEF,CCID,ROHS

Dimension (LxWxH )191×140×143mm

Environment temperature working temperature: 0~45℃

Storage：-10~60℃

humidity working temperature: 20-90%

Storage:10-90% (paper exclused)
